What is a ventilated rainscreen façade (VHF)?
Structure, function and benefits of a proven façade principle.
Key facts at a glance
- A ventilated rainscreen façade structurally separates weather protection, thermal insulation and load-bearing functions.
- The ventilation cavity supports controlled moisture management.
- The substructure and fixings transfer dead loads and wind loads to the building structure.
- Cladding material, grid and fixing method can be designed to suit the specific project.
A system with separate functions
A ventilated rainscreen façade is a multi-layer external wall system. Thermal insulation, a ventilation cavity, a substructure and the façade cladding are installed in front of the load-bearing wall. Its defining feature is the structural separation of thermal insulation and weather protection. Each layer can therefore be designed and installed specifically for its task.
How the layers work together

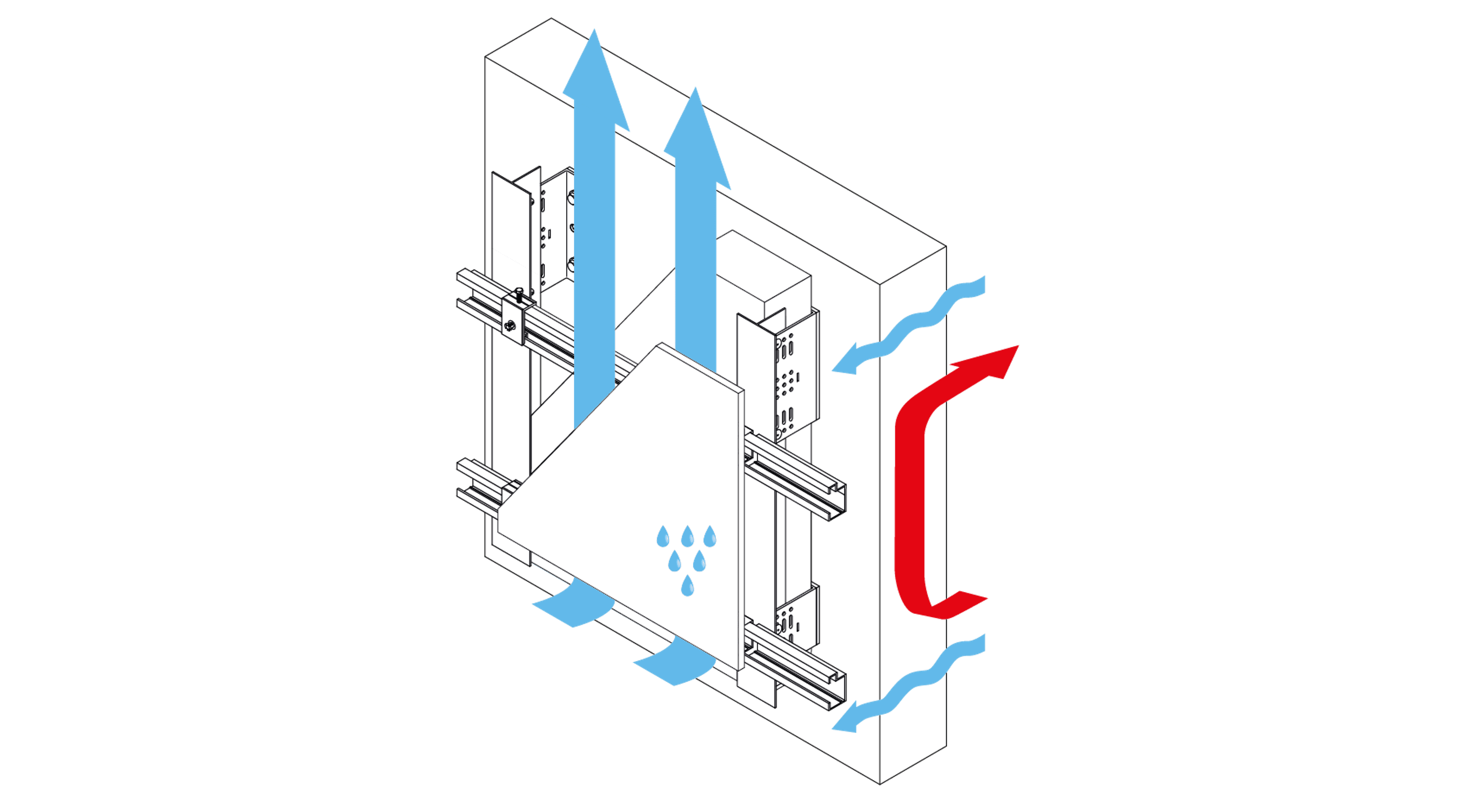

The cladding forms the weather-exposed outer layer and defines the appearance of the building. Behind it is a ventilated cavity through which moisture entering from outside or originating within the construction can be removed. The insulation layer remains separate from the cladding. The substructure, anchoring elements and fixings connect the individual layers to the supporting structure.
For design, this means that performance does not depend on one component alone, but on the coordinated interaction of all components. The dead load of the cladding and wind loads must be transferred reliably through the fixings and substructure into the anchoring substrate. Material compatibility, thermal bridges, joints and ventilation cross-sections must also be considered.

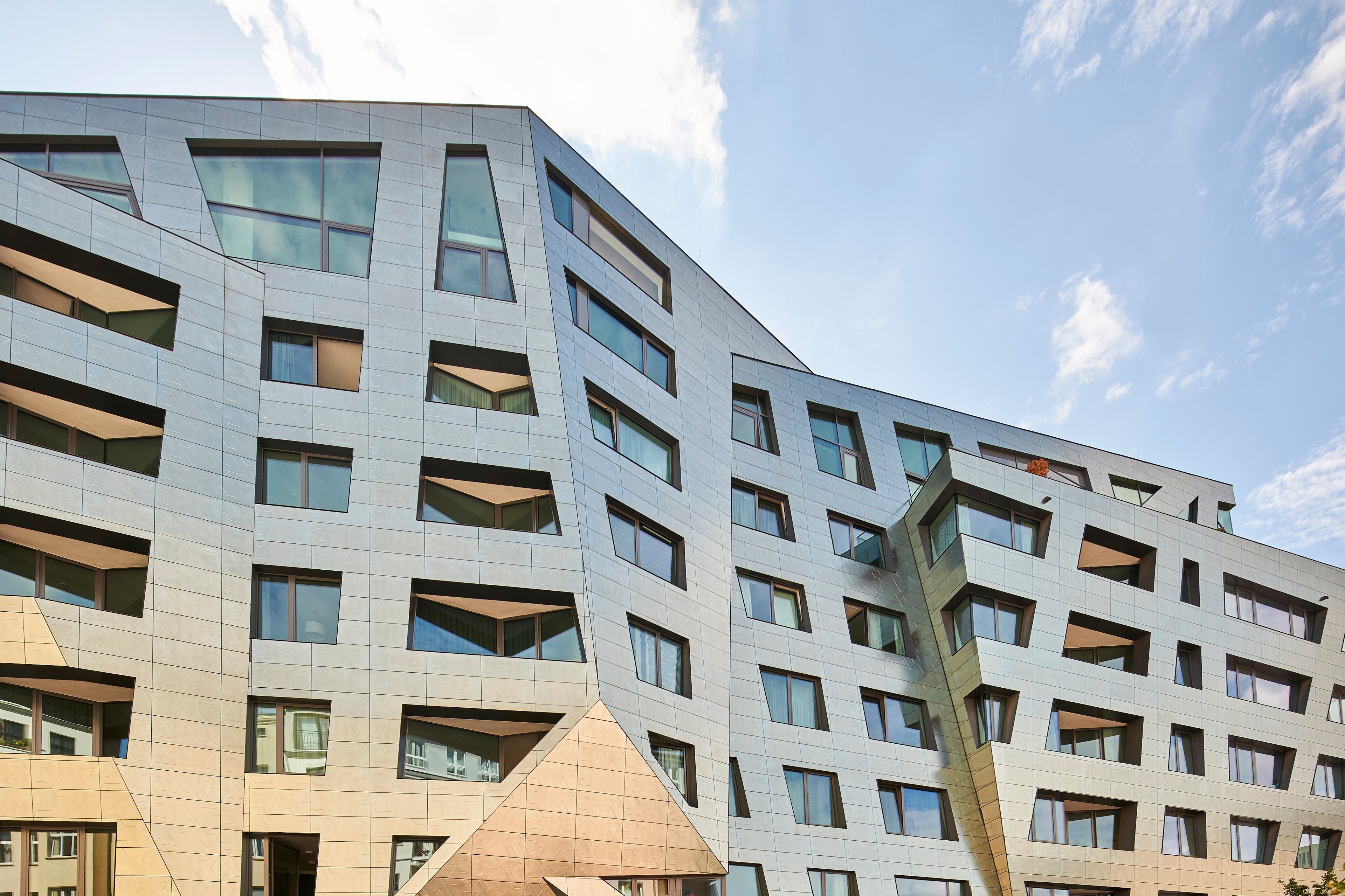

Technical and architectural flexibility
Ventilated rainscreen façades can be built with a wide range of cladding materials, including ceramic, natural stone, fibre cement, HPL and metals. Visible or concealed fixings create different façade appearances. Undercut anchors are a mechanical solution for the rear-side, positive-locking fixing of suitable panels. This keeps the visible surface free of fixing heads and allows the material itself to define the façade. Cladding, fixing system and technical evidence must always be coordinated.
Conclusion
A ventilated rainscreen façade is a clearly structured system whose performance results from the separation and coordination of its functions. Reliable design requires building physics, load transfer and fixing technology to be considered together.
